Isometric Drawing Asignment 1 - 4

Draw the isometric drawing of minimum 2 out of 4 of the objects bel0w.

** Bonus for aditional 2 other drawings.



OBJECT A

OBJECT B

OBJECT C

OBJECT D

Exercise 1

ISOMETRIC DRAWING NOTES and Exercise 1 & 2

Orthographic week 11

Cylindrical Block and Adjustable Rod Support

10-Orthographic Projection Exercise

Sketch Exercise I & II

Orthographic / Multiview Drawing

Orthographic Projection : 1st and 3rd angle

Assignment 9 and 10

Ellipse given dimension: minor axis 115mm and major axis 225mm

ELLIPSE

The resulting ellipse will have each of the four sides of the rectangle as a tangent parallel to one of its axes, with each long side being parallel to the major axis and each short to the minor.

Assignment 7 and 8

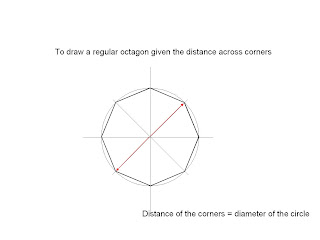

Geometrical Construction - Polygon

Assignment 5 and 6

Simple Geometrical Construction

Assignment 3 and 4 brief

Assignment 4 / Dimension & Scale تخفيض

Assignment 3 / Dimension & Scale ومقياس البعد

Due date 15th Sept 2009
4.00pm

Dimension and Scale

Assignment 2 / Format

تاريخ الاستحقاق Due date: 13th September 2009

Assignment 2 / Brief

L I N E S - خطوط

ALPHABET OF LINES
Each line on a technical drawing has a definite meaning and is draw in a certain way.
The line conventions recommended by the American National Standards Institute (ANSI) are used in the following figure, together with illustrations showing various applications.

Two widths of lines are recommended for use on drawings.
All lines should be clean-cut, dark, uniform throughout the drawing, and properly spaced for legible reproduction by all commonly used methods.
The contrast between the two widths of lines should be distinct. Pencil leads should be hard enough to prevent smudging, but soft enough to produce dense black lines so necessary for quality reproduction.



Three weights of lines may improve the appearance and legibility of the drawing.

The "thin lines" may be made in two widths--regular thin lines for hidden lines and stitch lines and a somewhat thinner version for other secondary lines such as center lines, extension lines, dimension lines, leaders, section lines, phantom lines, and long-brake lines.

For the "thick lines"--visible, cutting plane, and short break--use a relatively soft lead such as F or H.
All thin lines should be made with a sharp medium-grade lead such as H or 2H.

All lines (except construction lines) must be sharp and dark.

Make construction lines with a sharp 3H or 4H lead so thin that they barely can be seen at arm's length and need not be erased.

Three weights of lines in many illustrations and drawings are used for increased legibility.
In the above figure, the ideal lengths of all dashes are indicated. It would be well to measure the first few hidden dashes and center-line dashes you make, and then thereafter to estimate the lengths carefully by eye.
